HMT 4.0ECNC-DS
All-electric Dual-stack CNC Tube Bender
HMT 4.0ECNC-DS

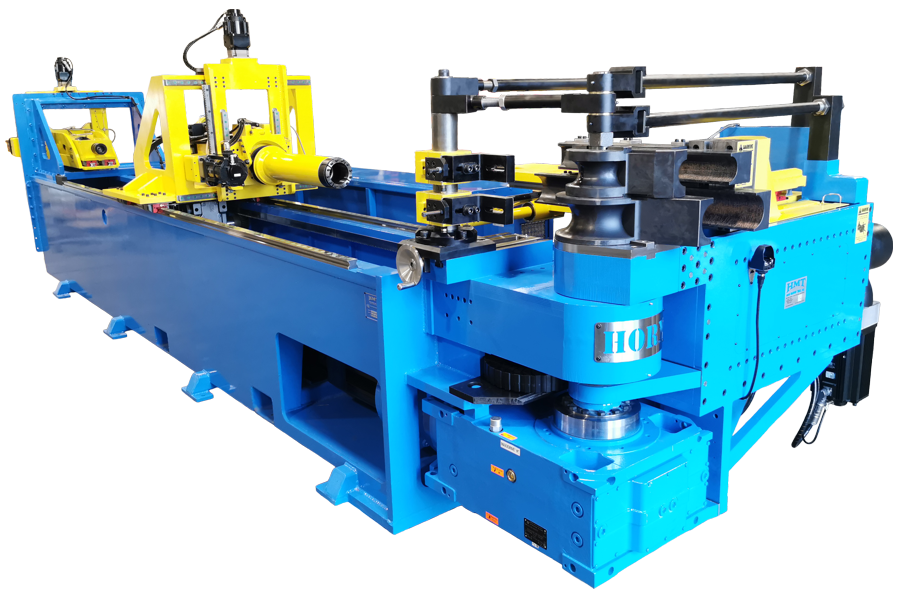

The HMT 4.0ECNC-DS dual stack, all-electric CNC tube bender is a very popular machine because it can bend up to 3” schedule 40 pipe, 4” OD tube and 2.5” square tube. It is an excellent choice for metal fabricators and job shops because of its overall flexibility. It is also an excellent exhaust bender as it can make 4” OD tight radius bends with very little effort. This bender can draw bend on either stack and roll form on the top stack. It can be provided with either LH or RH rotation and in standard bed or extended bed lengths.
It is a heavy-duty machine that is designed to run 24/7 at high speeds and requires very little maintenance. The end result is a machine that is built to last with plenty of service factor.
4.0ECNC-DS
| Specifications | UNIT | US | METRIC |
|---|---|---|---|
| Non-ferrous tubing (Yield to 25,000 PSI) | IN/MM | 4.000 X 0.375 | 101.6 X 9.5 |
| Steel tubing (Yield to 40,000 PSI) | IN/MM | 4.000 X 0.188 | 101.6 X 4.7 |
| Stainless steel tubing (Yield to 60,000 PSI) | IN/MM | 4.000 X 0.095 | 101.6 X 2.4 |
| Square steel tubing (Yield to 40,000 PSI) | IN/MM | 2.500 X 0.250 | 63.5 X 6.3 |
| Steel pipe | IPS | 3 IPS Sch 40 | |
| Solid steel bar | IN/MM | 2.500 | 63.5 |
