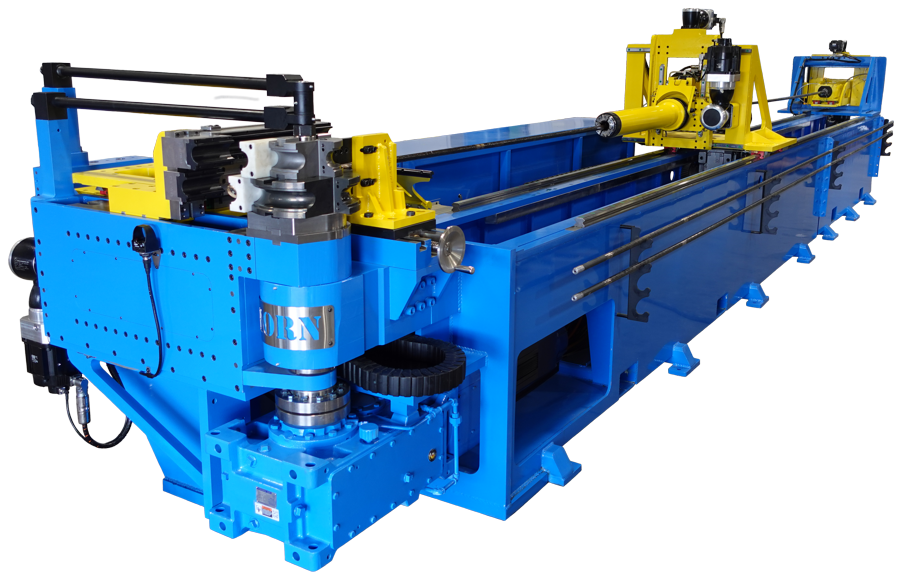

HMT 2.5ECNC-DS
All-electric Dual-stack CNC Tube Bender
HMT 2.5ECNC-DS
The HMT 2.5ECNC-DS dual stack, all-electric CNC tube bender is a popular machine because it is faster and less expensive than its 3” HMT big brother. It has a very low interference design and a pressure die system that allows for flat serpentine bending when required. This bender can draw bend on either stack and roll form on the top stack. It can be provided with either LH or RH rotation and in standard bed or extended bed lengths.
It is a heavy-duty machine that is designed to run 24/7 at high speeds and requires very little maintenance. The end result is a machine that is built to last with plenty of service factor.
HMT 2.5ECNC-DS
| Specifications | UNIT | US | METRIC |
|---|---|---|---|
| Non-ferrous tubing (Yield to 25,000 PSI) | IN/MM | 2.500 X 0.375 | 63.5 X 9.5 |
| Steel tubing (Yield to 40,000 PSI) | IN/MM | 2.500 X 0.188 | 63.5 X 4.7 |
| Stainless steel tubing (Yield to 60,000 PSI) | IN/MM | 2.500 X 0.095 | 63.5 X 2.4 |
| Square steel tubing (Yield to 40,000 PSI) | IN/MM | 1.750 X 0.250 | 44.5 X 6.3 |
| Steel pipe | IPS | 1-1/2 IPS Sch 80 | |
| Solid steel bar | IN/MM | 1.250 | 31.7 |
