Horn Metric CNC 18MBE2
All-electric Multi-stack CNC Tube Bender
Horn Metric 18MBE2

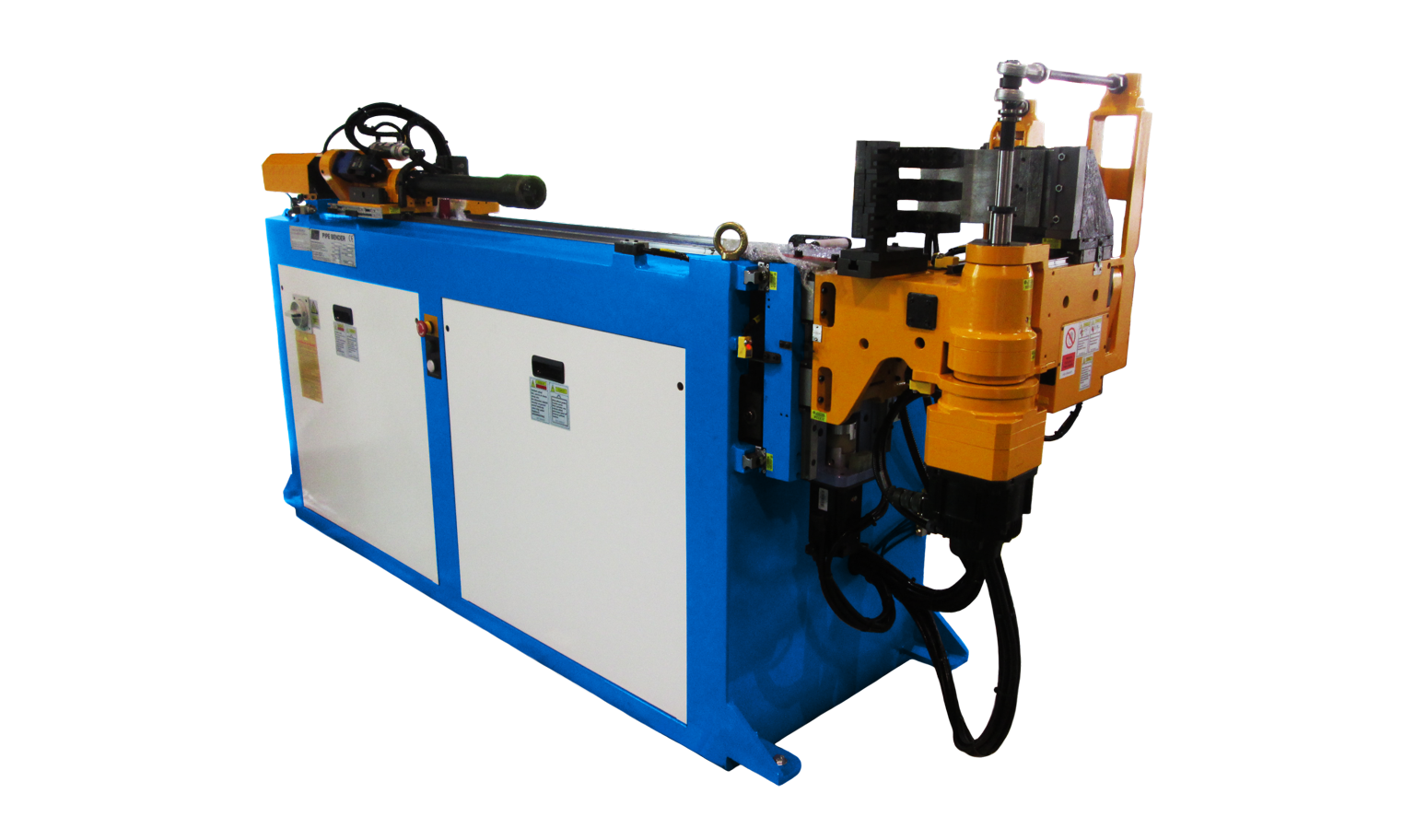

The Horn Metric CNC 18MBE2 is an all-electric multi-stack CNC tube bender that is offered with either a BendPro G2v3 control system, or a factory B5 control. There are no manual adjustments for this machine and it has automatic setup capabilities. This machine can be provided with either RH or LH rotation.
18MBE2
| Specifications | UNIT | US | METRIC |
|---|---|---|---|
| Non-ferrous tubing (Yield to 25,000 PSI) | IN/MM | 0.790 X 0.079 | 20.0 X 2.0 |
| Steel tubing (Yield to 40,000 PSI) | IN/MM | 0.700 X 0.063 | 18.0 X 1.6 |
| Stainless steel tubing (Yield to 60,000 PSI) | IN/MM | 0.700 X 0.031 | 18.0 X 0.8 |
| Square steel tubing (Yield to 40,000 PSI) | IN/MM | 0.500 X 0.047 | 15.0 X 1.2 |
| Steel pipe | IPS | 1/2 IPS Sch 40 | |
| Solid steel bar | IN/MM | 0.315 | 8.0 |
