All-Electric Single-Stack CNC Tube Bender


HMT manufactures a full line of single stack all electric CNC tube benders. These benders are easily configured to include a variety of options including extended bed lengths and low interference pressure die systems for flat serpentine bending.

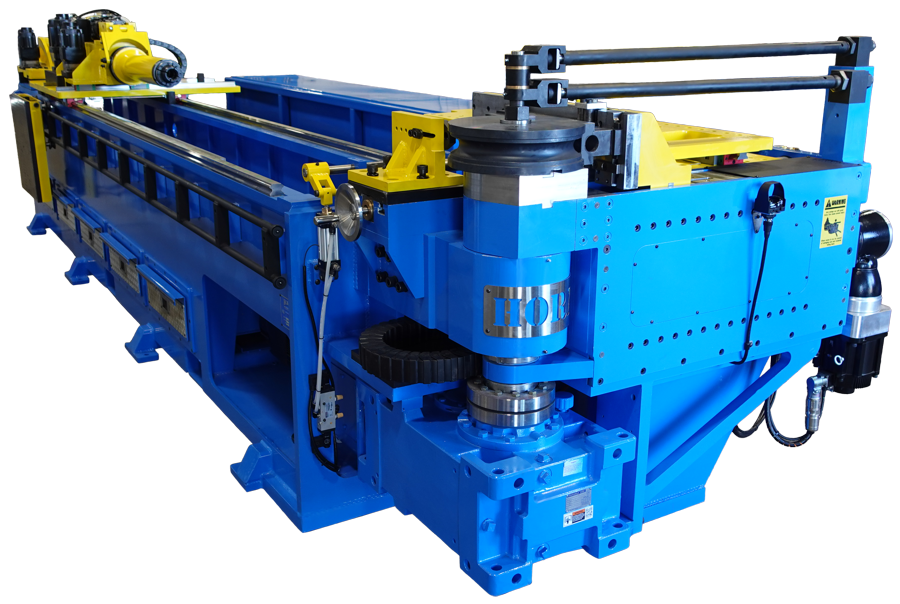

When HMT designed its 3.0ECNC-SS model, the same criteria needed to be met as our multi-stack machines. They had to be extremely fast, capable of running 24/7 and be able to bend 3″ stainless steel on a 3″ CLR. These benders all have automatic setup capabilities and tool changes are extremely fast on the single stack machines. A full toolset change takes about 5 minutes.


Specifications UNIT US METRIC
Non-ferrous tubing (Yield to 25,000 PSI) IN/MM 3.00 X 0.375 76.2 X 9.5
Steel tubing (Yield to 40,000 PSI) IN/MM 3.00 X 0.188 76.2 X 4.7
Stainless steel tubing (Yield to 60,000 PSI) IN/MM 3.00 X 0.095 76.2 X 2.4
Square steel tubing (Yield to 40,000 PSI) IN/MM 2.00 X 0.250 50.8 X 6.3
Steel pipe IPS 2 IPS Sch 80
Solid steel bar IN/MM 1.750 44.4
