HMT 3.0ECNC-DS

All-electric Dual-stack CNC Tube Bender

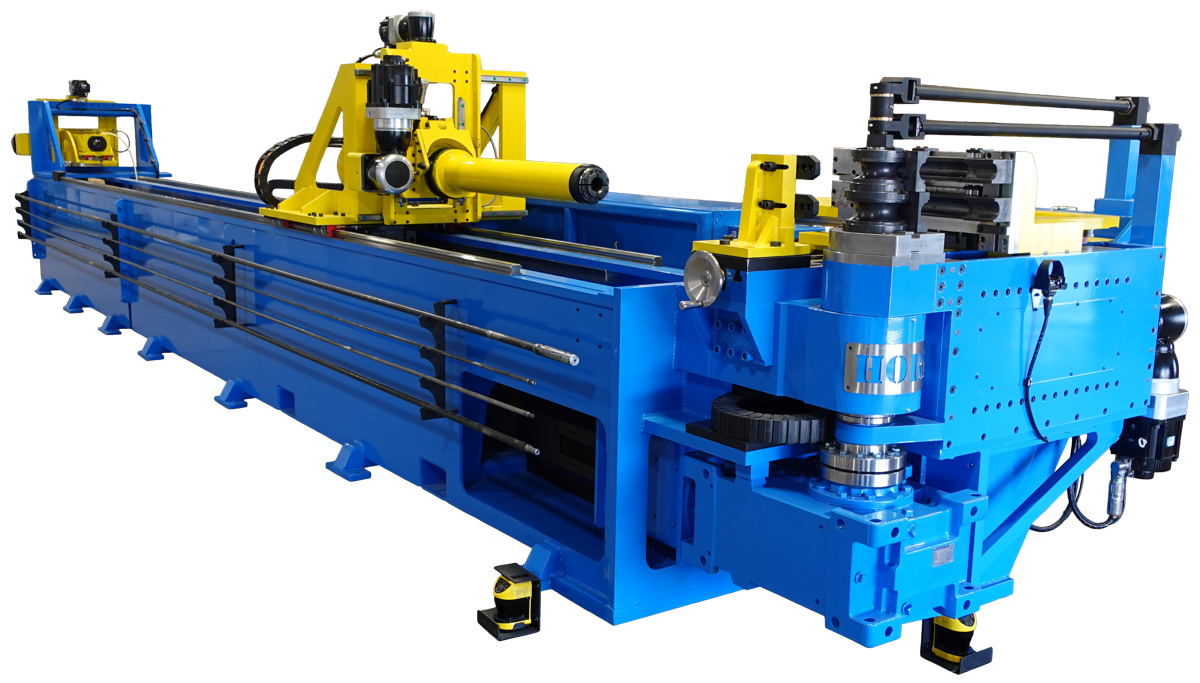

HMT 3.0ECNC-DS

The HMT 3.0ECNC-DS dual stack, all-electric CNC tube bender is a very popular machine because it can bend up to 2” schedule 80 pipe, 3” OD tube and 2” square tube.   It is a great choice for metal fabricators and job shops because of its overall flexibility.  It has a very low interference design and a pressure die system that allows for flat serpentine bending when required.  This bender can draw bend on either stack and roll form on the top stack.  It can be provided with either LH or RH rotation and in standard bed or extended bed lengths.

It is a heavy-duty machine that is designed to run 24/7 at high speeds and requires very little maintenance.  The end result is a machine that is built to last with plenty of service factor.



3.0ECNC-DS

Specifications UNIT US METRIC
Non-ferrous tubing (Yield to 25,000 PSI) IN/MM 3.00 X 0.375 76.2 X 9.5
Steel tubing (Yield to 40,000 PSI) IN/MM 3.00 X 0.188 76.2 X 4.7
Stainless steel tubing (Yield to 60,000 PSI) IN/MM 3.00 X 0.095 76.2 X 2.4
Square steel tubing (Yield to 40,000 PSI) IN/MM 2.00 X 0.250 50.8 X 6.3
Steel pipe IPS 2 IPS Sch 80
Solid steel bar IN/MM 1.750 44.4
